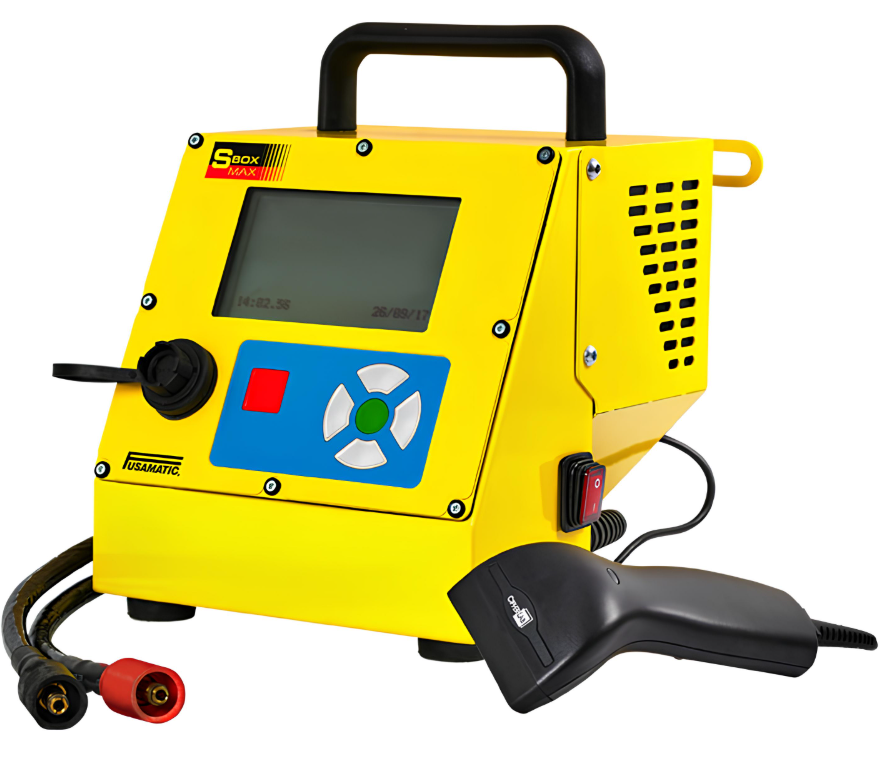

SBOX Max
The SBOX Maxbc Electrofusion Welder gives you functionality, reliability and is capable of welding any brand of electrofusion fittings for gas, water and other pressure pipe applications up to 630mm, and uses Fusamatic, barcode and manual entry for the input of fusion data.
| Coupling Size Range | 20-630mm Ø |
| Dimensions [HxWxL] | 310x410x320mm |
| Weight (with Output Leads) | 17kg |
| Case Material | Coated Steel |
| Mains Input Cable Length | 3m |
| Fusion Output Cable Length | 2.5m |
| Typical Input Voltage | 230v |
| Input Frequency | 40-60Hz |
| Typical Input Current | 16A |
| Required Generator Rating | 4.2-6.0kW |
| Output Voltage [Vac RMS] | 10-48v |
| Max. Output Current [Continuous Aac RMS] | 60A |
| Environmental Protection | IP54 |
| Data Recording Capacity | 2000 Records |
