Polymax
| Code | – 31500095 |
|---|---|
| Name | PolyMax |

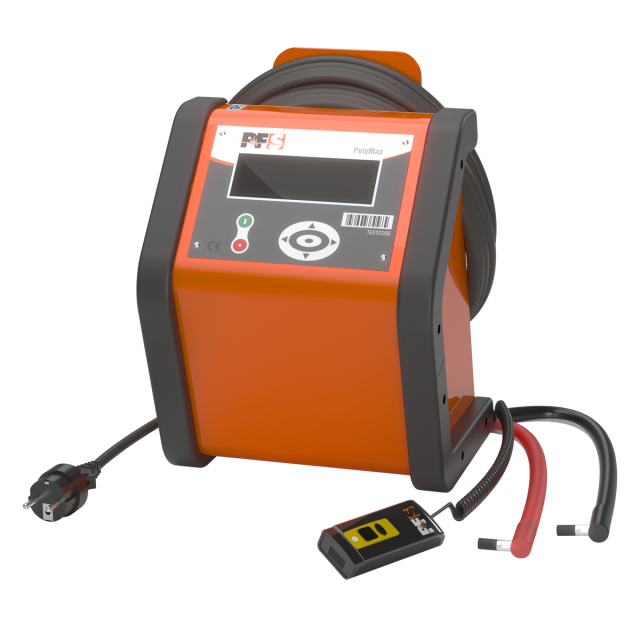

| Description | The PolyMax is a very powerful electrofusion control unit based on inverter technology for welding PE pipes with electrofusion fittings. The robust construction of the device makes it a star on every construction site and is not only convincing here with its external values. |
| Dimension Range | Municipal applications up to *1600 mm *For fittings larger than 630 mm longer cool-down times between individual weldings must be provided. |
| Display | 4x20 characters, small, backlight |
| Interfaces | Bluetooth (Smartphone App) USB |
| Welding Parameter Input | Barcode Reading Pen Barcode Scanner SmartFuse Manual |
| Data Recording | Yes |
| Output Voltage | 8-48 V AC |
| Input Voltage | 230 V AC (190-300 V) |
| Input Frequency | 50/60 Hz (40-70 Hz) |
| Welding Cable | detachable or fixed |
| Additional Information | Universal Welding terminals. 4.0mm & 4.7mm |
| Packaging Dimensions | 470×350×310 mm |
| Transport Weight | 13,7 kg |
