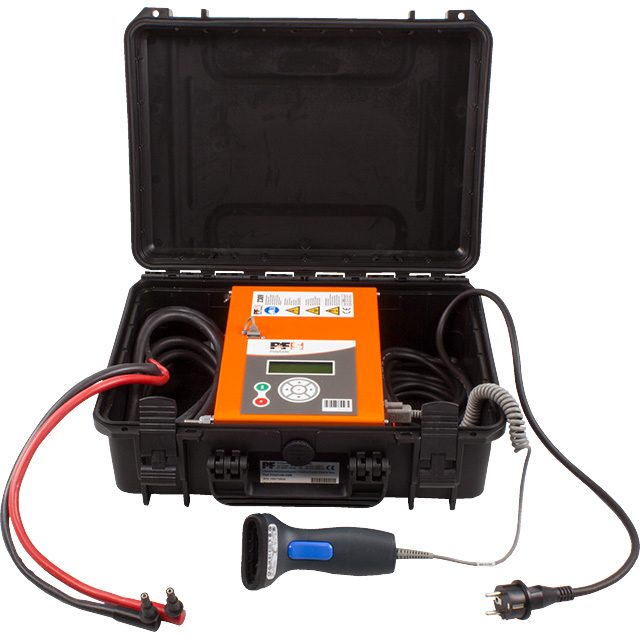

Polycode 180
| Code | - 31500090K |
|---|---|
| Name | PolyCode 180 |
| Description | The newest member of our family of electrofusion control units has been tailored to the needs of installers. By integrating the device into the transport case, it is very mobile, always safely packed and easy to transport. |
| Dimension Range | Plumbing and Gas applications max. 160/180 mm |
| Display | 4x20 characters, small, backlight |
| Interfaces | Bluetooth (Smartphone App) USB |
| Welding Parameter Input | Barcode Scanner SmartFuse |
| Data Recording | Yes |
| Output Voltage | 8-48 V AC |
| Input Voltage | 230 V AC (190-300 V) |
| Input Frequency | 50/60 Hz (40-70 Hz) |
| Welding Cable | Fixed |
| Additional Information | Universal Welding terminals. 4.0mm & 4.7mm |
| Packaging Dimensions | 466×176×366 mm |
| Transport Weight | 11 kg |
