Fusion F60
F60 230V lightweight electrofusion welding machine. Capable of welding electrofusion fittings for gas, water and other pressure pipe applications from 20-200mm in diameter. Uses Fusamatic, barcode and manual entry for the input of Fusion data. Operating temperature -20°C/+50°C.

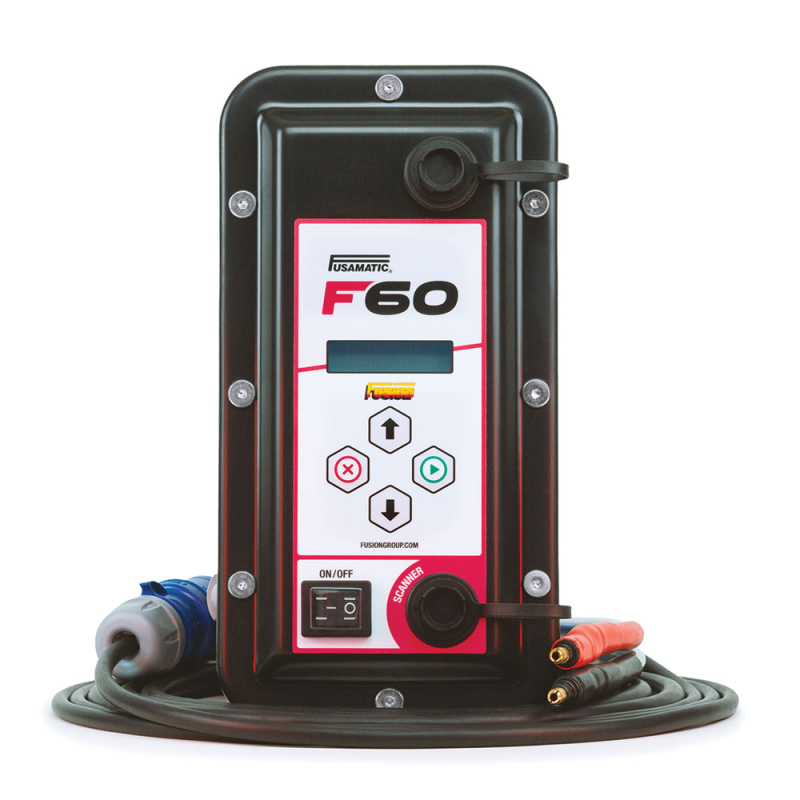

The F60 is a lightweight, portable and compact electrofusion welding machine, capable of welding electrofusion fittings for gas, water, and other pressure pipe applications up to 200mm in diameter. This welding unit is especially suited for day to day service and utility connections.
F-Series electrofusion machines utilise high performance components, with toroidal technology for efficient and effective control over the welding cycle. This provides a stable and continuous welding performance in the most challenging conditions. Providing professionals with the speed, versatility, and reliability needed to weld leak-free networks.
Features
- Fusamatic fitting size range 20-200mm diameter (always check with the fitting manufacturer on the power and welding time required).
- Fusamatic, barcode and manual entry for input of Fusion data.
- Welding times between 3-600 seconds.
- Lightweight - only 12kg including Field Pack portable bag and cables (16.5kg in optional Field Armour carry case).
- 4.0mm diameter welding leads as standard.
- Mains input cable length - 3.5m. Fusion output cable length - 3.5m.
- Multilingual selectable display - 10 languages available.
- Joint data memory of 2,000 weld records - downloadable to USB memory stick.
- Output current/duty cycle limits - 30 Amps continuous/60 Amps max.
- Output voltage - 8 - 48 Volts (Fusamatic/automatic mode is fixed 39.5V ac rms).
- Input voltage and frequency - 230V ac (195 to 270V) 50Hz (37 to 62Hz).
- Input power min and max - 230 VA to 3680 VA (apparent) 230V variant.
- Environmental protection IP54 / Class II.
- Scanner Type - CCD scanner.
